ORACLE Part # 5817-PRO
U.S. Patent No. D842175

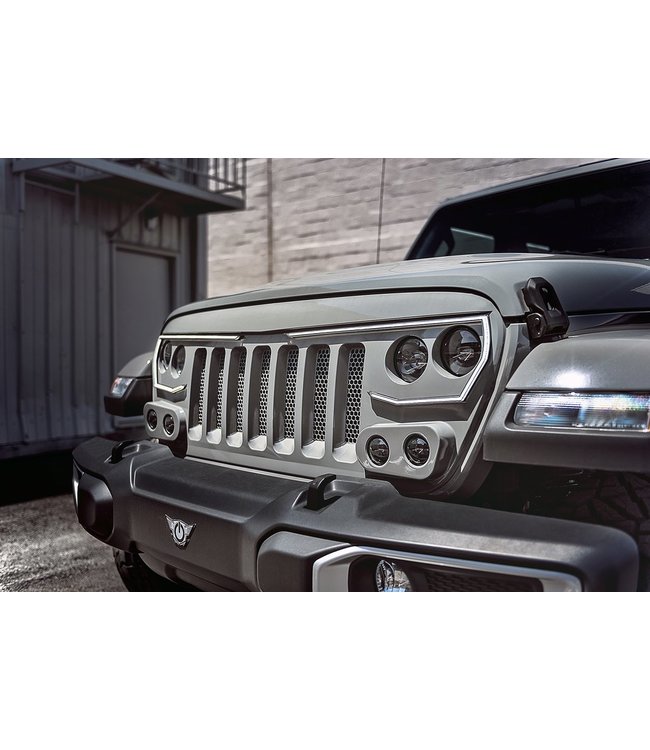

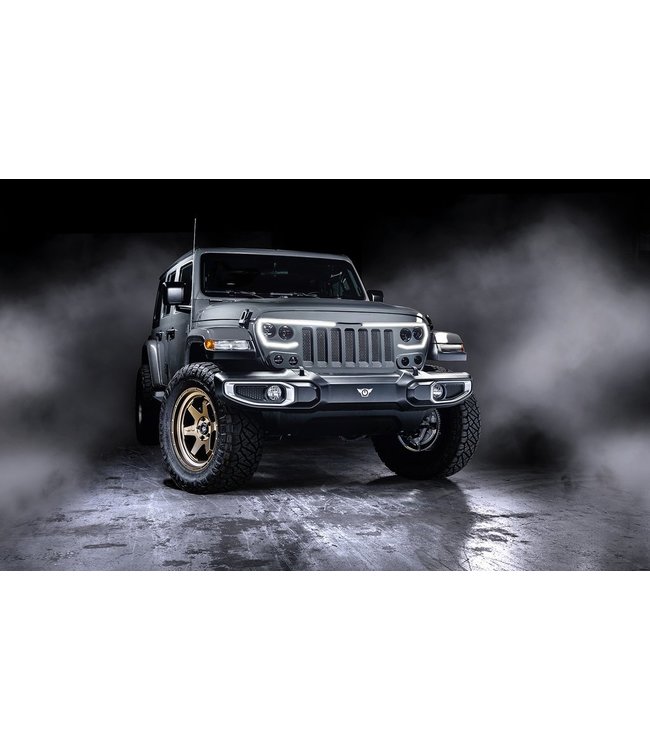

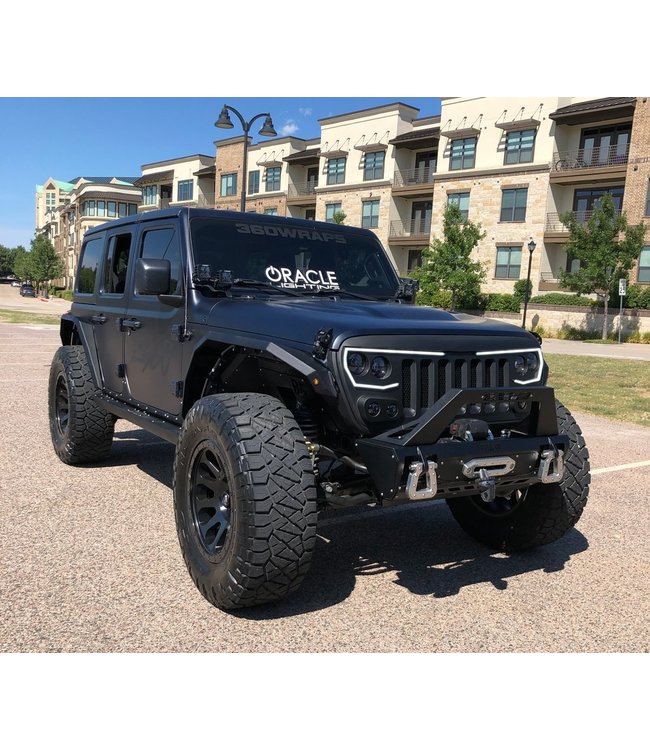

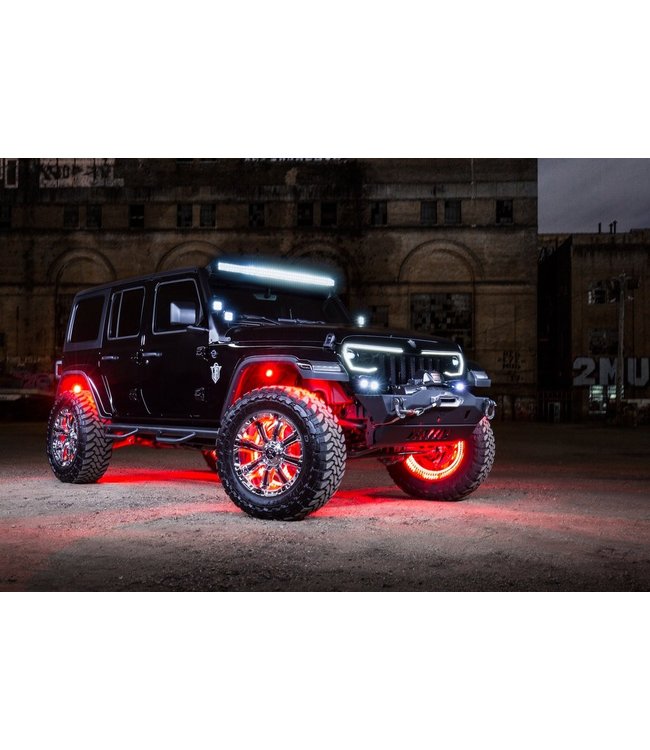

The ORACLE Lighting Vector™ Series Grill for the Jeep Wrangler JL and Gladiator JT is the first full-featured replacement grill with integrated LED light emitters for Low Beam, High Beam, as well as a Dynamic LED DRL. This unique design is equipped with an array of application-specific LED lighting features and has the aggressive styling and rugged durability that Jeep owners demand. The new PRO-SERIES revision of the Vector Grill includes major improvements to the quality and durability of the LED DRL Modules. These modules are now robotically sealed to create an Ingress Protection Rating of IP68 which will keep moisture out of your fixtures even from exposure to pressurized water spray and brief underwater submersions. The DRL modules are now mounted with hardware rather than adhesive to make these parts easier to remove for grill painting and maintenance.

For more information about the new PRO-SERIES Vector Grill: CLICK HERE

Each LED emitter can independently adjusted in order to put a focused beam of light on the road without blinding oncoming traffic, this is especially important for lifted Wranglers. The separate driving and Low Beam lights allow for proper light distribution for optimal road legal light coverage. The Vector™ Series Grill features an impressive 5,600 Combined Lumen (Raw Lumens) Low Beam with advanced optics for precision lighting that illuminates the road for increased driver visibility without creating glare that can blind oncoming traffic. 7,200 Combined Lumen High Beam for illuminating any dark landscape. The headlight wiring connection is "Plug and Play" thanks to the included harness adapter which plugs into the factory socket. The DRL module is wired in to the vehicle’s fuse box with the included fused wiring adapter. Installation takes 1-2 hours for most beginners and requires only basic tools for DIY installation.

Additional features of the ORACLE Lighting Vector Series Grill include an integrated LED Daytime Running Light (DRL) which increases driver safety by making the Wrangler more visible to other drivers on the road. This DRL also features a unique "startup sequence" Dynamic LED display. The components of the Vector Grill were CAD developed to insure that the fit and finish of this product matches factory quality and fitment. The ORACLE Vector™ Series Grill was designed in the USA and has been granted USPTO design patents and has other patents pending in the US and countries abroad.

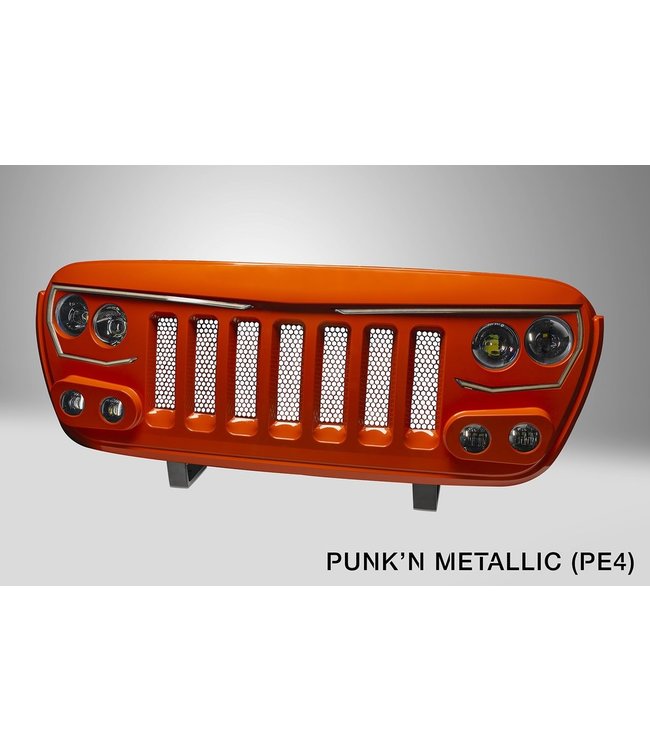

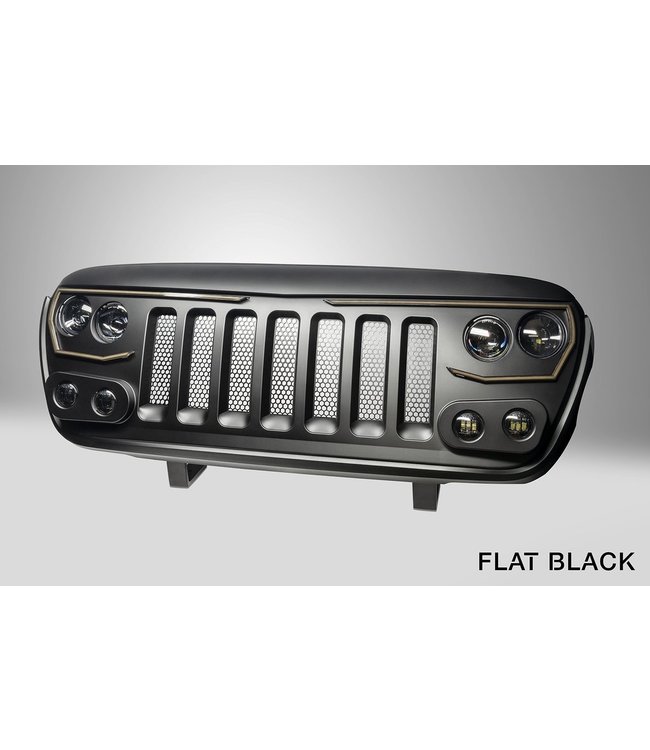

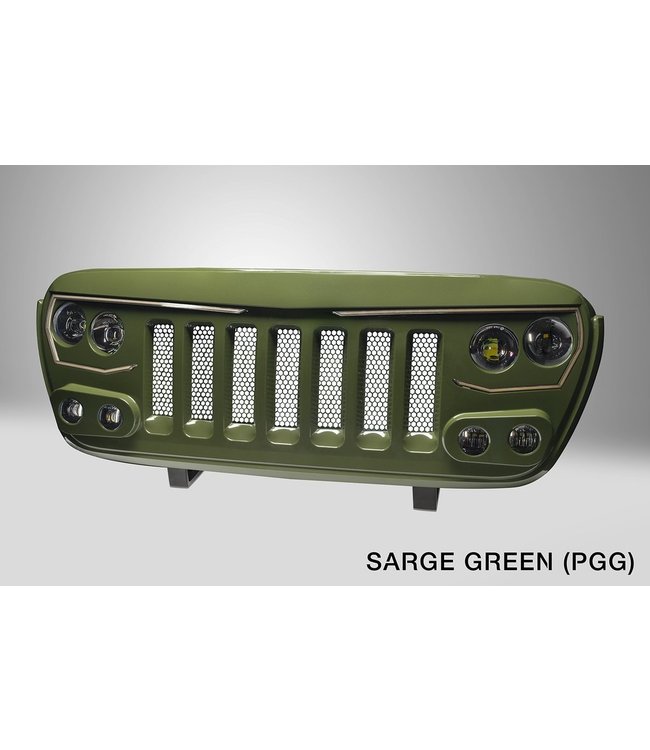

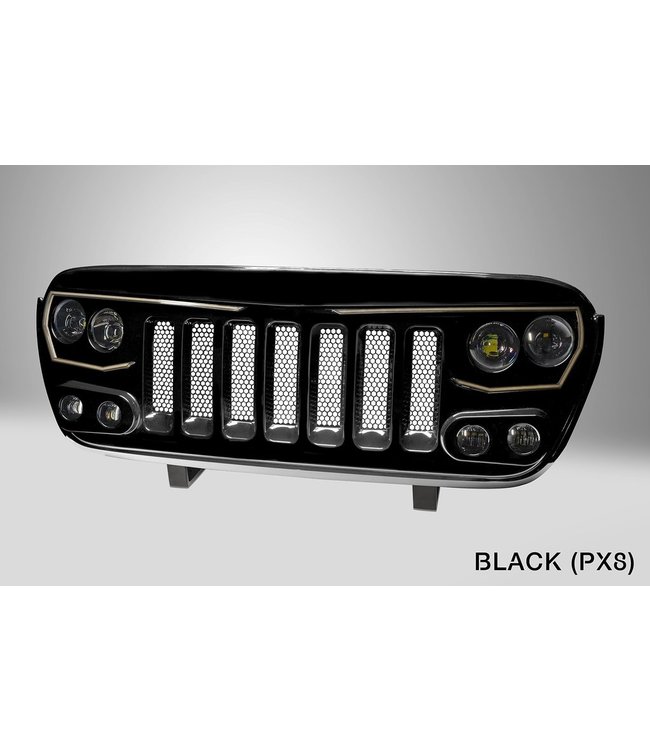

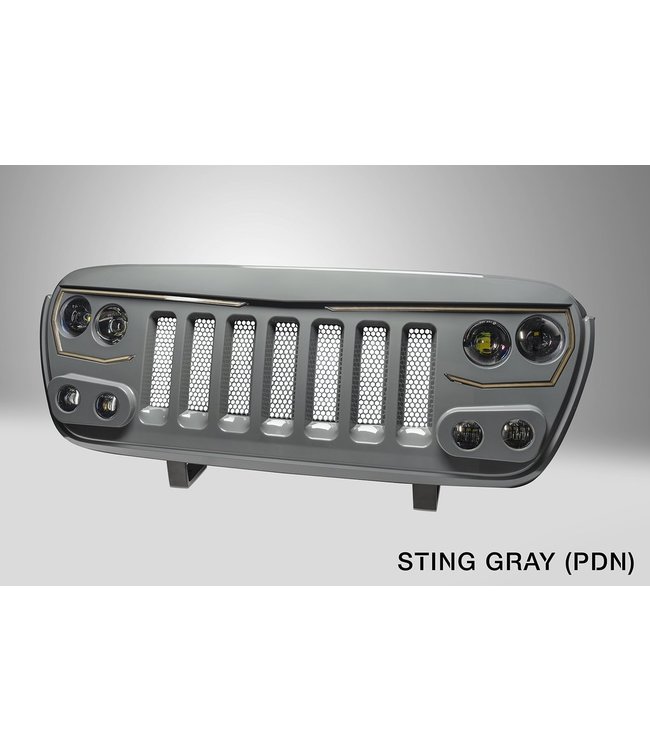

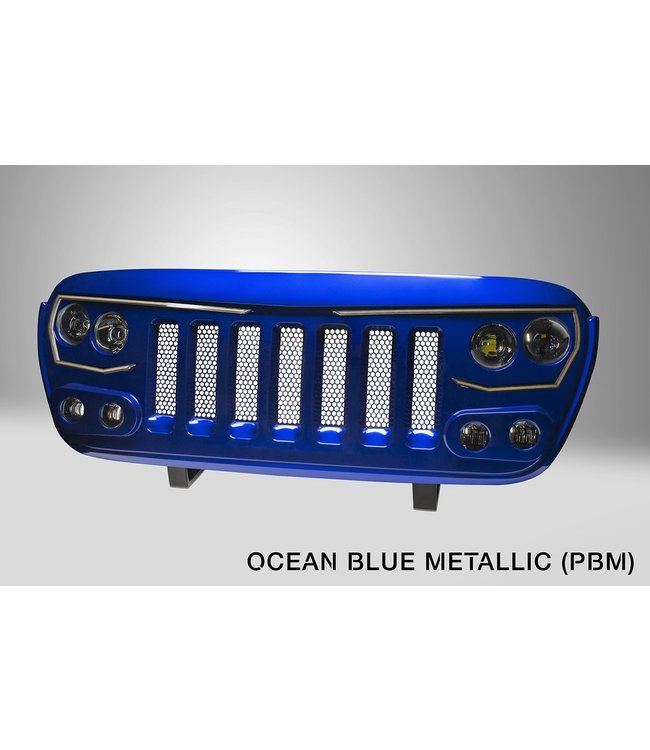

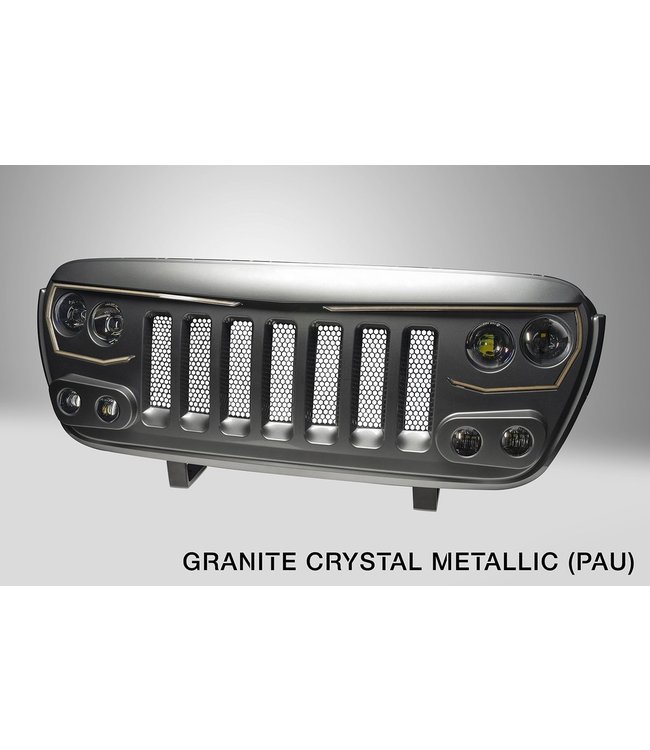

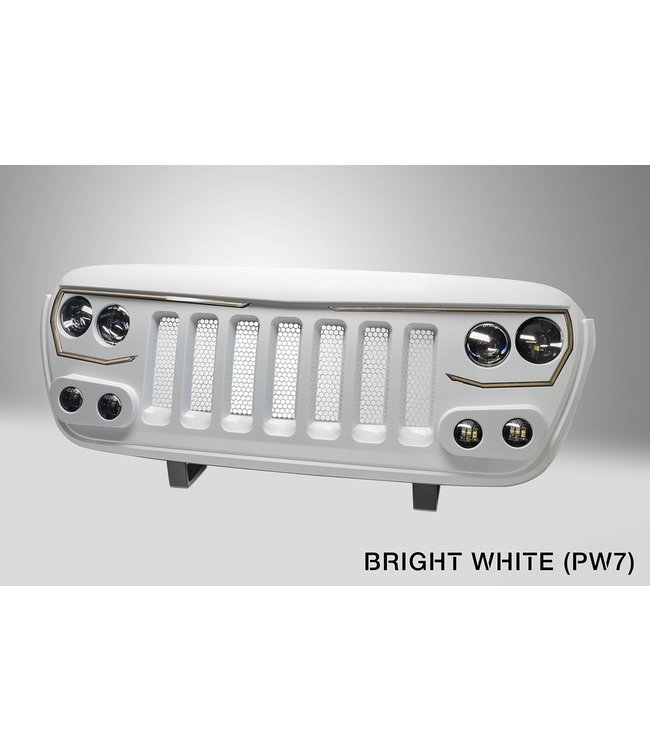

ORACLE Now Offers PAINTED Vector Grills! That's right: get your Vector Grill delivered to your door painted by our professional painter in your OEM color-matched finish! This service starts at $280 and adds 15-20 days processing time to ensure the finish is fully cured and can be shipped safely. Once paint process has started, order cannot be cancelled/refunded. If you do not see your paint code listed please call or email us and we will add it! Don't know where your paint code is located? Check the info panel on the driver door jamb or watch a tutorial HERE.

Still have a question about installing your grill? Check out the FAQ section HERE

Each LED beam can be independently adjusted in order to put light on the road without blinding oncoming traffic, especially important for lifted Wranglers. The separate driving and Low Beam lights allow for proper light distribution for optimal road legal light dispersement.

The Vector™ Series Grill features an impressive 5,600 Combined Lumen Low Beam with advanced optics for precision lighting that illuminates the road for increased driver visibility without creating glare that can blind oncoming traffic. 7,200 Combined Lumen High Beam for illuminating any dark landscape. The simple wiring connection is "Plug and Play" thanks to the included harness adapter.

Additional features of the ORACLE Lighting Vector Series Grill include an integrated LED Daytime Running Light (DRL) which increases driver safety by making the Wrangler more visible to other drivers on the road. This DRL also features a unique "startup sequence" Dynamic LED display.

The components of this project were CAD developed to insure that the fit and finish of this product matches factory quality and fitment.

The ORACLE Vector™ Series Grill has Patents Granted in the USA and China with attentional PATENTS currently pending.

ORACLE Lighting Vector™ Grill Specifications:

• Fitment: 2018-21 Jeep Wrangler JL
• Fitment: 2020-21 Jeep Gladiator
• Construction: Polycarbonate
• Durability: Impact Rated Shell
• Installation: Factory Mounts
• Fully Equipped w/ LED Components
• 2 Year Manufacturer Warranty

ORACLE LED Low Beam LED Emitter Specifications:

• Total 4,000 Lumens Light Output
• 24 Phillips ZES™ 5W LEDs
• Horizontal and Vertical Adjustability
• Designed Exclusively for Vector™ Grill
• Advanced Optics Design for Optimal Visibility
• Precision Beam "no glare” output design
• Easy “Plug and Play” DIY Installation
• 2 Year Manufacturer Warranty

ORACLE LED Driving Beam LED Emitter Specifications:

• Total 1,600 Lumens Light Output
• 6 Phillips ZES™ 5W LEDs
• Horizontal and Vertical Adjustability
• Designed Exclusively for Vector™ Grill
• Advanced Optics Design for Optimal Visibility
• Precision Beam "no glare” output design
• Easy “Plug and Play” DIY Installation
• 2 Year Manufacturer Warranty

ORACLE High Beam LED Emitter Specifications:

• Additional 1,600 Lumens Light Output
• 6 Phillips ZES™ 5W LEDs
• Horizontal and Vertical Adjustability
• Designed Exclusively for Vector™ Grill
• Advanced Optics Design for Optimal Visibility
• Full Beam high output design
• Easy “Plug and Play” DIY Installation
• 2 Year Manufacturer Warranty

ORACLE Dynamic LED DRL Specifications:

• Over 200 Individual High Output LEDs
• Exclusive Vector™ LED DRL Design
• Eye-Catching Daytime Running Light
• Dynamic LED Startup Sequence
• Easy “Plug and Play” Wiring
• 2 Year Manufacturer Warranty

Package Contents:

• 1x - ORACLE Lighting Vector Series Grill
• 4x - Adjustable LED Low Beam Emitters
• 2x - Adjustable LED Driving Beam Emitters
• 2x - LED High Beam (Bright Beam) Emitters
• 2x - Dynamic Daytime Running Lights
• 2x - Plug & Play Headlight Harnesses
